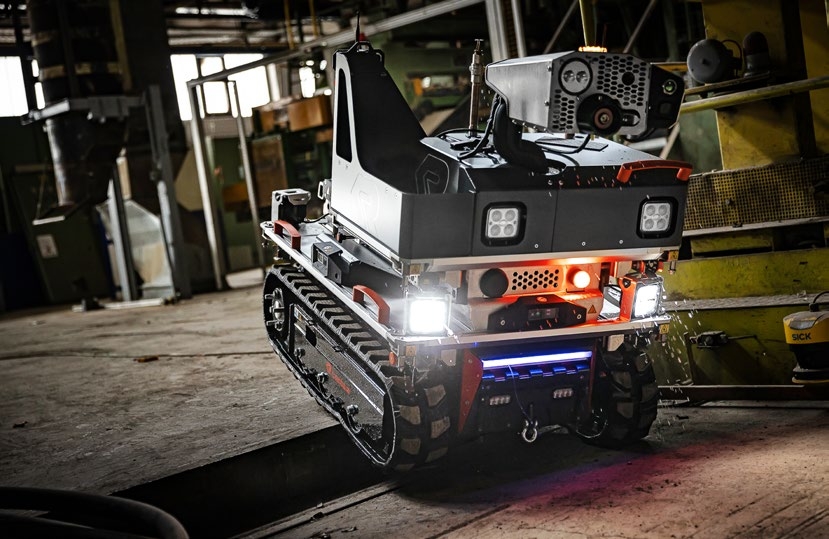

RTE Robot Multifunctional operational robot.
Versatile. Strong. Durable
Strong and resilient. Suitable for off-road use and waterproof.
Impressive tractive force, The RTE Robot is powered by two electric motors, each with a peak output of 2.4 kW; this ensures propulsion on almost any surface via the rubber crawler tracks. It generates a tractive force of around 70% of the current dead weight on asphalt (i.e., 700 kg at a maximum total weight of 1,000 kg) and can therefore also pull damaged vehicles, for example. In firefighting operations, the tractive power is sufficient for one hose line (DN 75 filled) with a length of 180 m, or three lines with a length of 60 m each
Huge payload

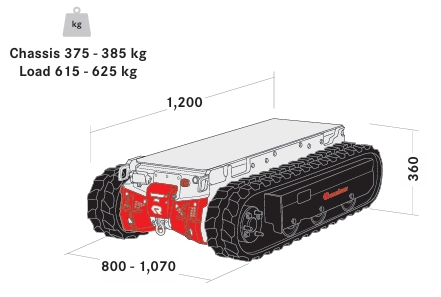

The chassis with electric track drive is 1,200 mm long, 360 mm high and available with a width of either 800 mm or 1,070 mm, whereby the wider track makes the robot even more stable when transporting loads with a high center of gravity off-road. It weighs in at 375 kg (or 385 kg in the wider version). With a permissible total weight of one ton, this results in an enormous payload of 625 kg (or 615 kg)
Remote Control.
Wide ranging and flexible

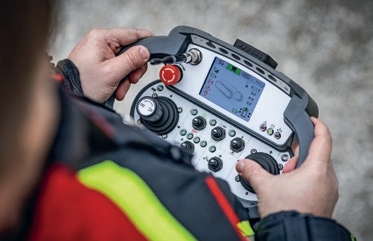

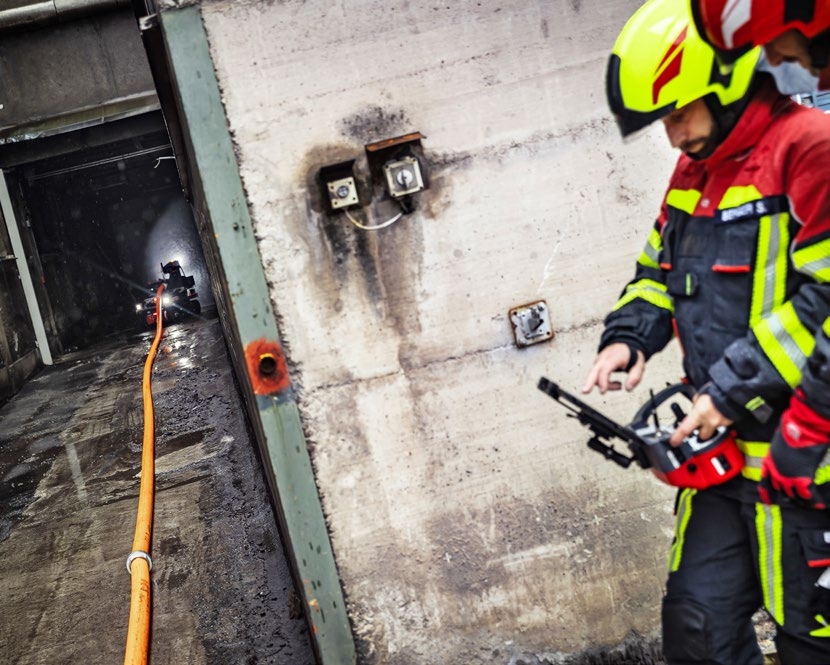

Large range, long operating time The housing of the remote control is protected against dirt and moisture (protection class IP 65), and the built-in rechargeable batteries enable up to 20 hours of operation. The RTE Robot can be controlled interruption-free over a distance of up to 200 m. The exact range is heavily dependent on the weather, interfering magnetic fields, e.g., from power lines, obstacles in the radio path and the selected frequency, which in turn may be limited by the legal requirements of the respective country.
Modular remote control

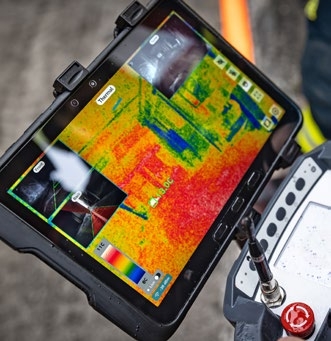

Rosenbauer offers several expansion levels of its handy, robust and modular remote control for the RTE Robot. These range from the basic version with a joystick for operating the chassis only to a remote control with several joysticks and buttons, an integrated display, plus an additional tablet for video display. In addition to the RTE Robot Chassis, it can also be used to control all available payloads, such as the turret
Limitless modularity. Maximum versatility.

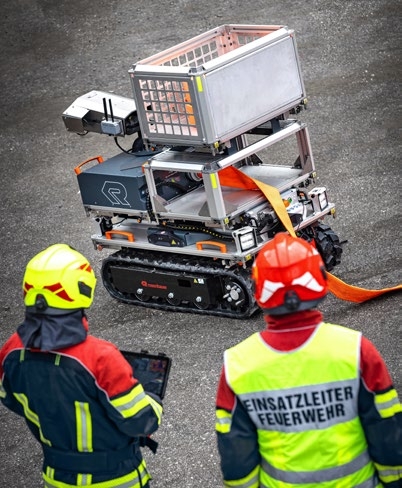

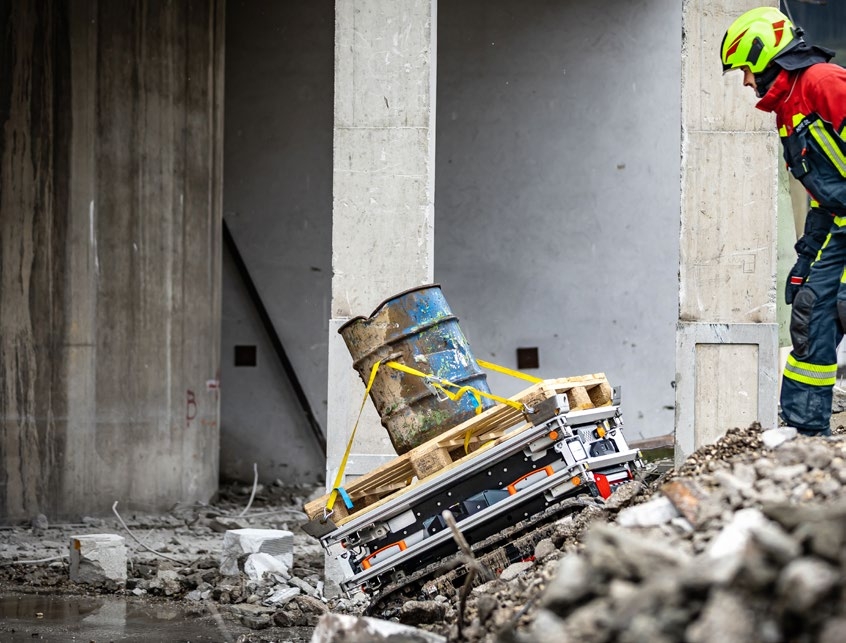

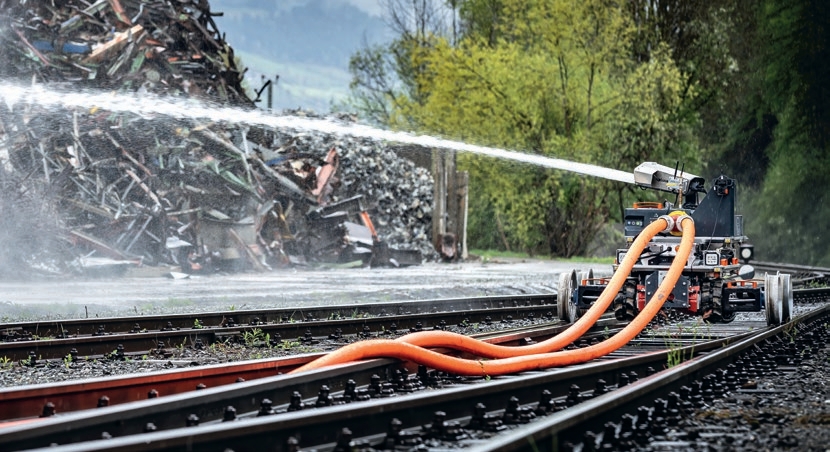

Various add-on, payload and transport modules The RTE Robot can be expanded using a variety of add-on modules for the sides, front and rear. These include a rail attachment kit that makes tracks usable (e.g., in streetcar tunnels), a trailer coupling, a cable winch, and brackets for add-on modules at the front and rear to expand the usable area. Furthermore, a whole range of payload modules are available that the RTE Robot can carry.
These include half and full modules (with 540 x 800 mm and 1,200 x 800 mm base areas respectively), with and without a wire mesh box, a holder for the safe transport of a Euro pallet, as well as any full modules based on the standard variants of the RTE RC Profile rolling container.
There are two separate transport modules for transporting Rosenbauer rolling containers themselves; one with a storage height of 270 mm (only for the chassis with a width of 1,070 mm) and one with 360 mm storage height. The RTE Robot can be easily loaded and unloaded with these containers via ramps
Module for firefighting

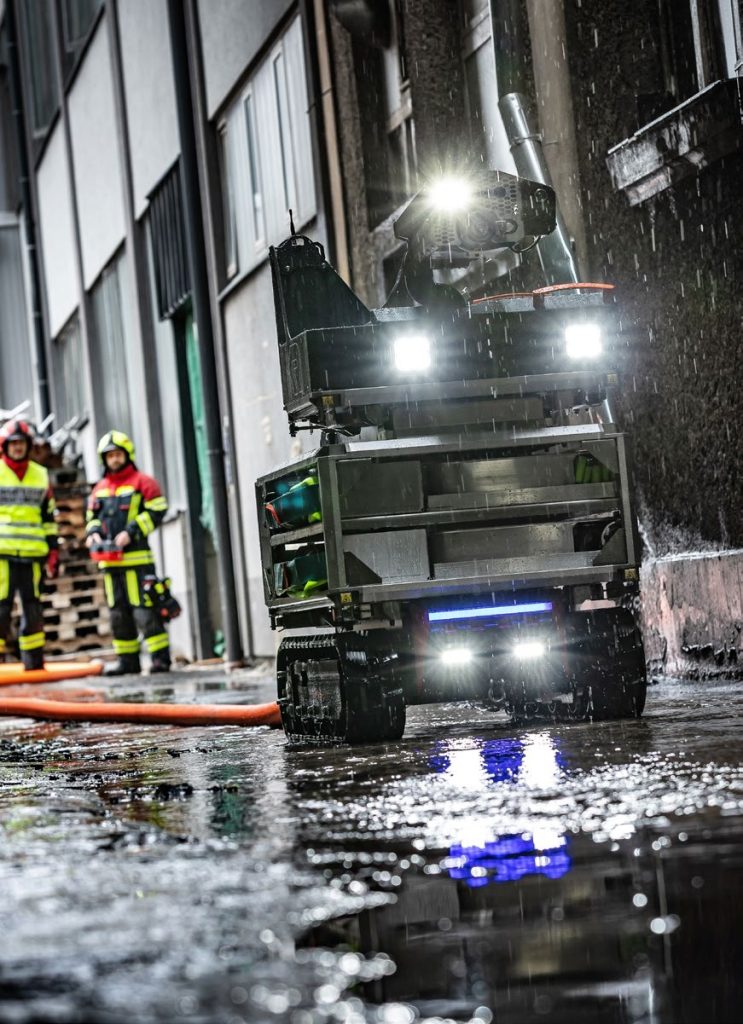

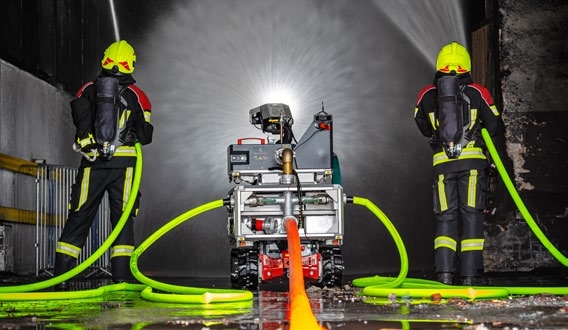

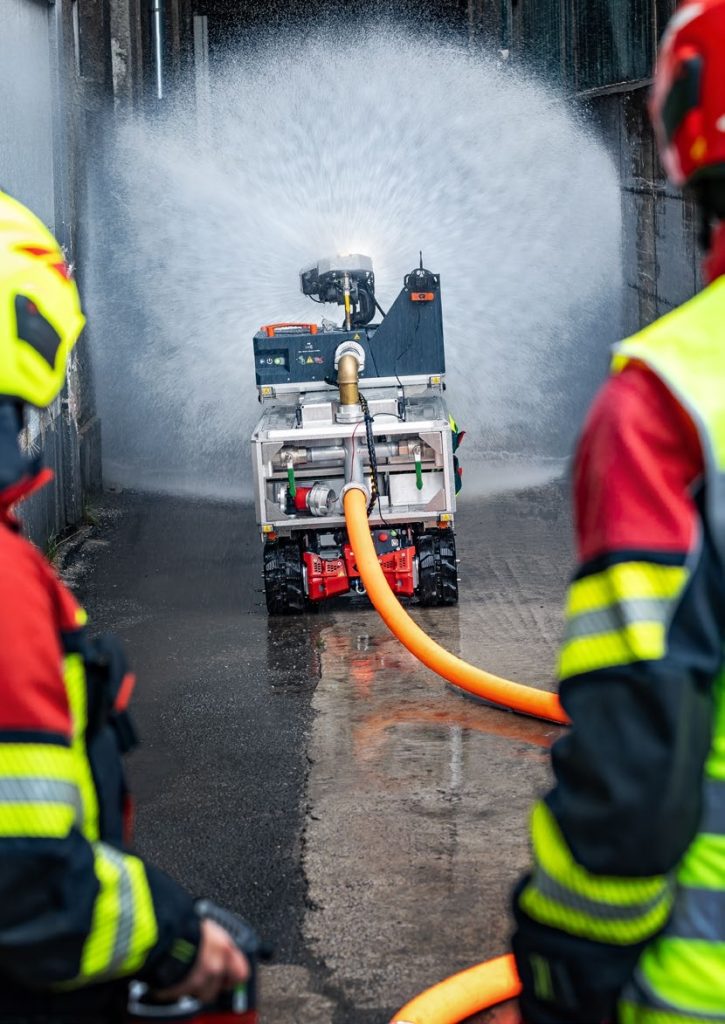

The RTE Robot can also be combined with turret modules to extinguish fires where it is simply too dangerous for the emergency crews. Rosenbauer offers the RM15 with a maximum flow rate of 2,000 l/min as a half and full module with self-protection nozzle, 2 LED floodlights, and an optional color and/or thermal camera. The RM35 provides up to 3,500 l/min as a full module. There is also an intermediate module for extinguishing operations, which can accommodate equipment and at the same time supply an attached turret with extinguishing agent. All intermediate modules are characterized by the fact that they are mounted on the chassis and themselves have mounting points for additional payload modules.
Power pack and fan

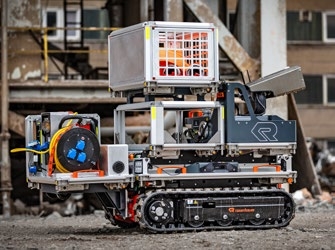

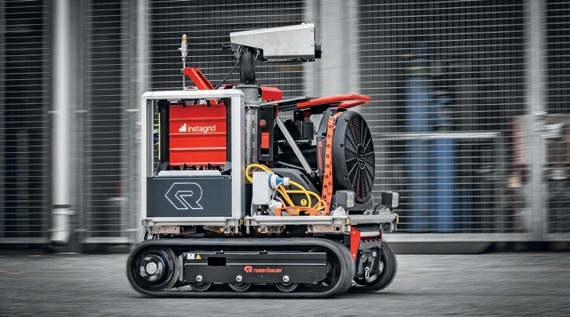

A half module with a separate Li-ion power pack and cable reel can be used to supply power to electrical equipment in remote areas. At the same time, it can also charge the robot itself while in operation. Another half module carries an electrically operated overpressure fan, which is powered by a power pack and can also be activated or deactivated via the remote control.
Practical payload exchange system
The Rosenbauer payload exchange system allows even fully loaded payload modules to be exchanged safely with minimal manpower. It works in a similar way to a swap body in container logistics: the payload module is easily lifted by one person using a simple mechanism and can then either be picked up by the RTE Robot and transport ed away or safely placed on a pallet for storage using its
own adapter, for example
Autonomous Execution.
For safety without visual contact.
Smart assistance system

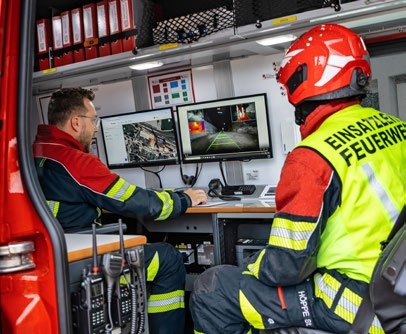

Rosenbauer offers the Autonomous Execution (AX) extension for the safe and legally permissible use of the RTE Robot beyond the visual line of sight. This consists of an intermediate module with sensors for detecting the surroundings, a computing unit, and an expanded remote control with a large display. On the one hand, this enables straightforward operation, even without visual contact. On the other, the robot is able to see for itself, recognize obstacles, and react accordingly
