The RTE Robot (Rosenbauer Technical Equipment) is a radio remote-controlled, electrically powered multi functional crawler vehicle. It is available in two widths, 800 mm or 1070 mm. It combines compact dimensions, high payload and unique modularity. This makes it an indispensable helper for all rescue organizations.
Multifunctional
▪ Quick and easy change between payload modules via standardized interface
Developed for firefighting use
▪ Suitable for the most adverse environmental conditions up to temporary submersion of the chassis
▪ Good maneuverability
▪ Good off-road performance
▪ Suitable max. speed of 5 km/h
Firefighting payloads
▪ Standardized payload with a dimension of 800 x 1.200 mm or 800 x 540 mm – possible payloads analog to mobile equipment carriers

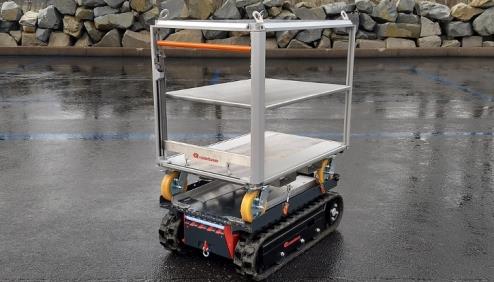

▪ Transport of mobile equipment carriers

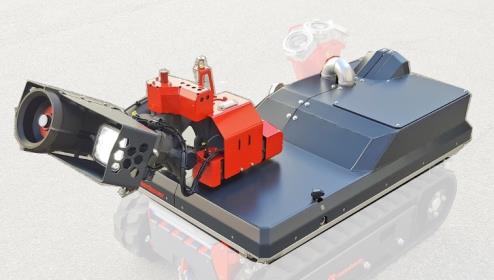

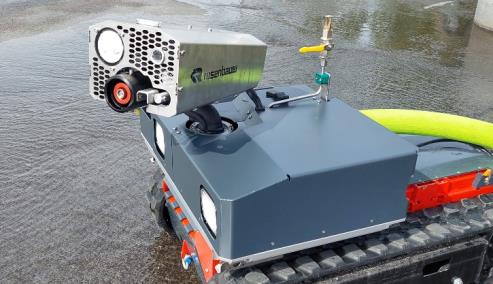

▪ Payload modules with electronically controlled turrets (RM 15C or RM 35C)

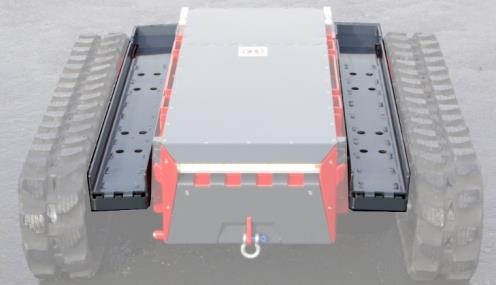

Alternative chassis width 1,070 mm
▪ Greater stability when transporting heavy loads with a high center of gravity off-road
▪ Transport of compatible roll containers on fixed rails in optimum center of gravity position

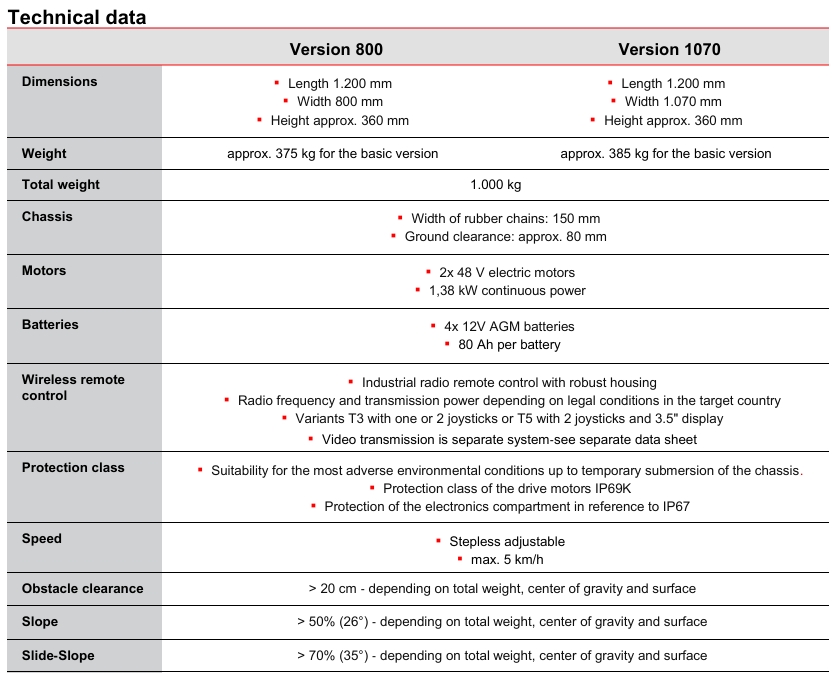

Compact Design
▪ Length 1.200 mm
▪ Width 800 mm / 1.070 mm
▪ Height 360 mm
Lightweight Design, high payload
▪ Weight for basic version approx. 375 kg / 385 kg
▪ Payload approx. 625 kg / 615 kg
▪ Max. total weight 1.000 kg
Easy to control

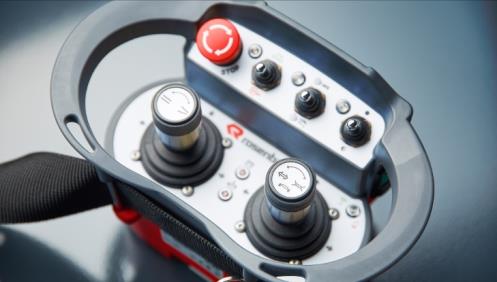

▪ Industrial wireless remote control
▪ One-hand operation

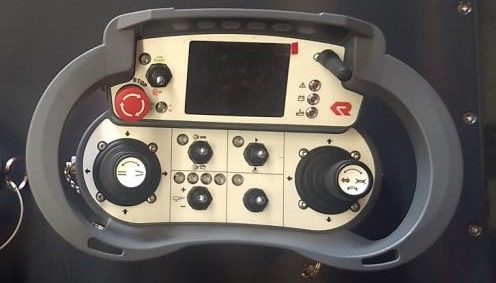

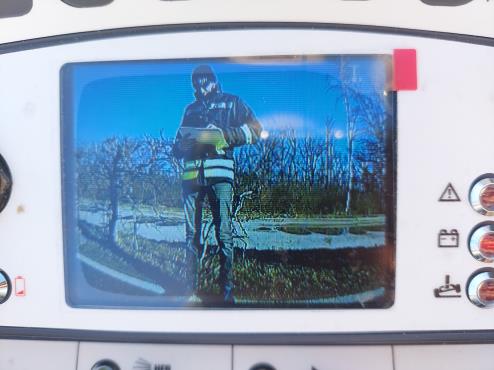

▪ Optional 3,5“ display for showing the live stream of a camera mounted on a payload module
Light and horn

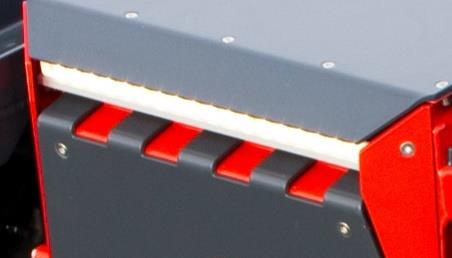

▪ Fully-integrated LED front light

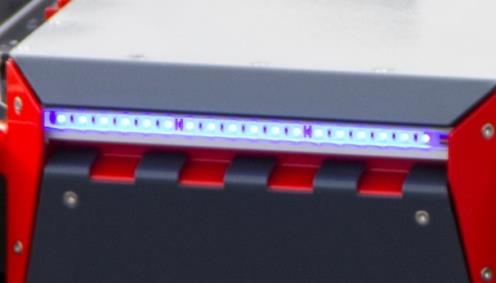

▪ Flashing blue light
▪ Acoustic warning device

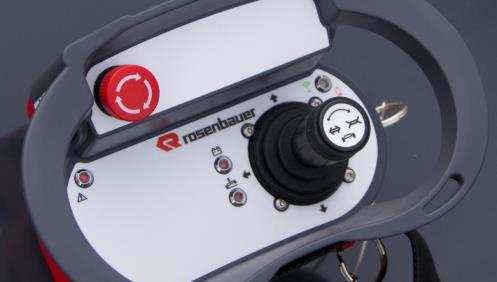

Remote Control

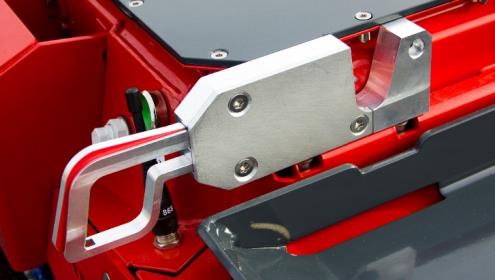

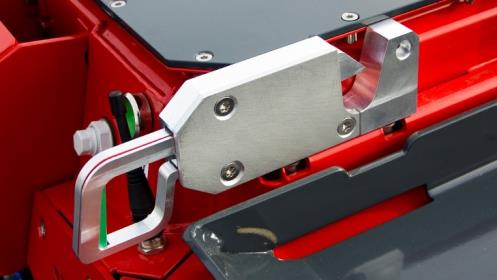

Payload locking system

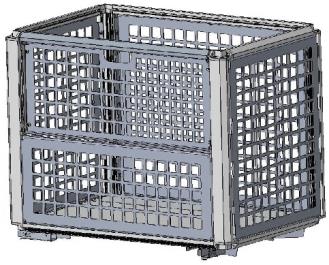

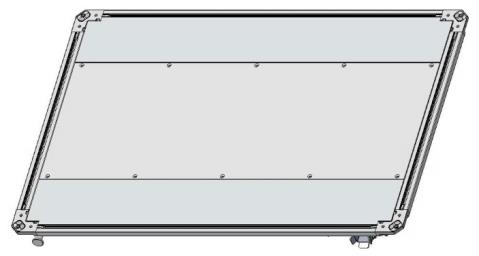

Payloads modules
position)
