Extinguishing system for batteries of EV or PHEV vehicles
The Rosenbauer extinguishing system for high-voltage batteries in electric vehicles is a system for the safe, efficient and fast extinguishing of batteries based on lithium-ion technology. It enables direct cooling of the battery modules, or the cells within the modules and thus a quick stop of the propagation of the thermal runaway of the cells.

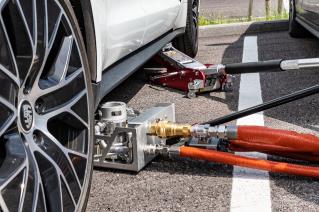

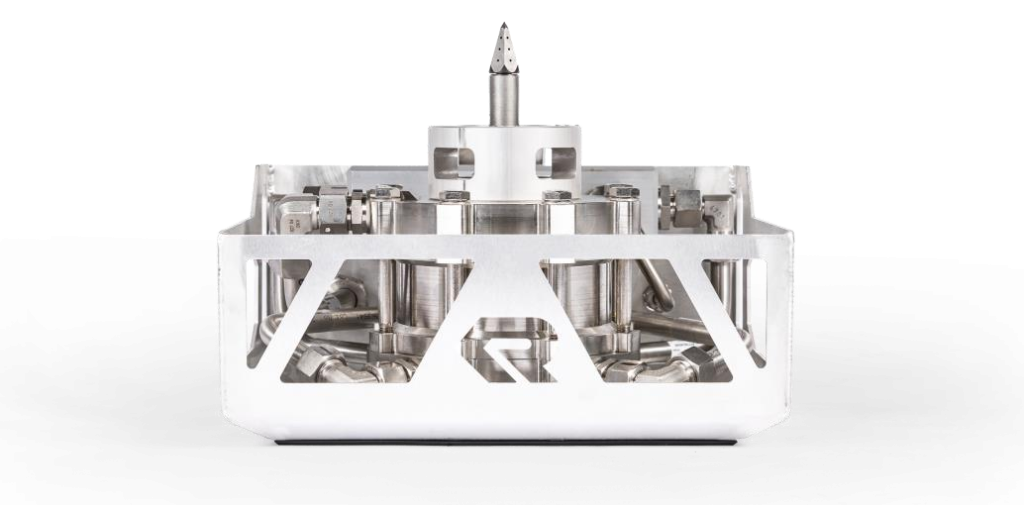

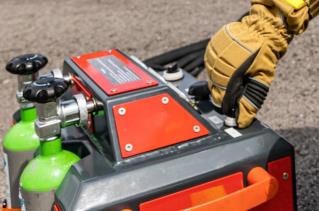

The system consists of two main components – the extinguishing unit and the operating unit, which are connected to one another with hoses. The extinguishing unit is positioned on the battery and – if necessary – jacked on the car body or other points. The preferred position of the extinguishing unit is on the underside of the vehicle. The operating unit triggers the penetration of the piercing tool into the battery housing from a safe distance away. Immediately after piercing, the battery housing is flooded with water and the efficient cooling process starts.
Safe
▪ The firefighters only spend a short period of time in the direct vicinity of the electric vehicle to be extinguished. This short time near the vehicle reduces the risk of contamination with the smoke gas con stituents if the battery is evaporating gas.
Efficient
▪ The extinguishing system brings the extinguishing water exactly where it is needed – to cool the cells and modules in the battery housing. This means that extinguishing is very resource-saving and the spread of smoke gases is reduced to a minimum.
Fast penetration
▪ Thanks to the special penetration method of the piercing tool, all currently known and tested battery housings can be safely penetrated.
Self-sufficient
▪ The energy required for penetration is provided by compressed air cylinders.
Tested under real conditions
▪ During the research and development, numerous fire tests were carried out with a large number of battery systems and complete vehicles. The system was tested on all common cell types (round, pouch or prismatic cells) in the platforms of European and American cars and trucks. The batteries tested had a capacity of up to 120 kWh.
Proven in practice
▪ Factory, professional and voluntary fire brigades in Europe have been testing the extinguishing system for months and are providing important feedback
from practice.

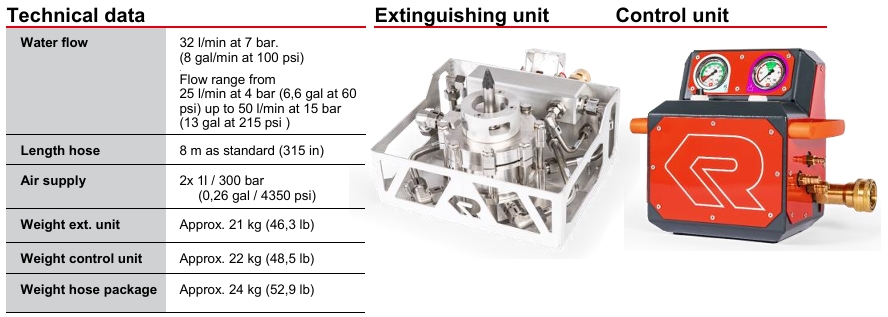

Normal pressure extinguishing system
▪ The extinguishing system only needs water with a pressure of 4-10 bar (60-150 psi) as an extinguish ing medium. This means that every existing normal pressure extinguishing system can be used.
▪ Extinguishing water is fed in via a Storz C connection or other compatible hose couplings on the extinguishing hose line.
