Aerial Ladders – Highest operational quality.
The high art
Rosenbauer is the only full-range supplier for fire protection and firefighting worldwide. Thanks to innovative know-how and the drive to always have our finger on the pulse of the times for the best possible performance, Rosenbauer has become the technology leader in the industry. The highest safety and quality are therefore guaranteed. Today and in the future

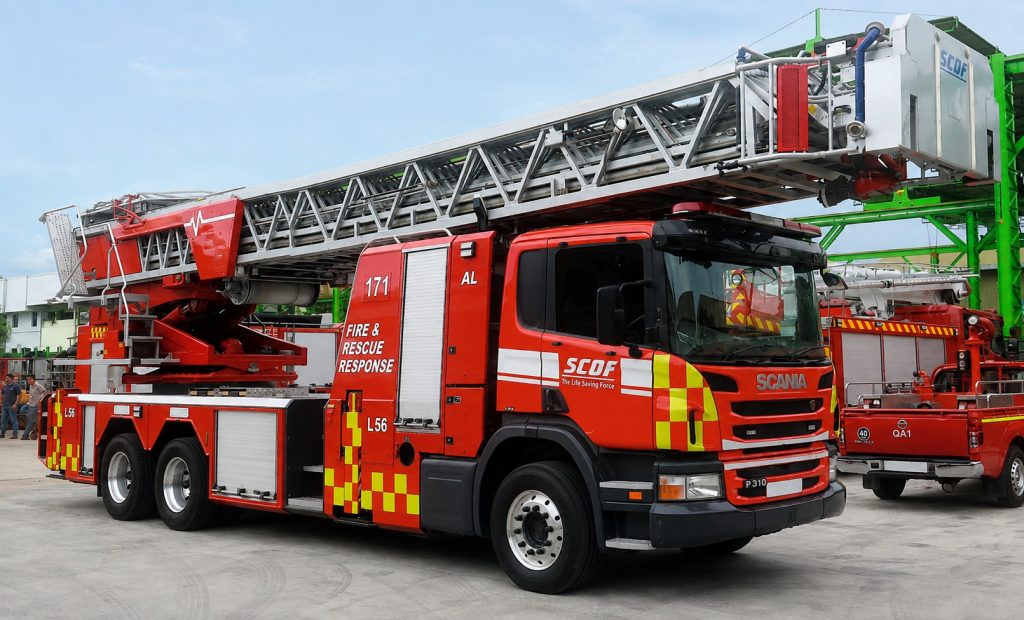

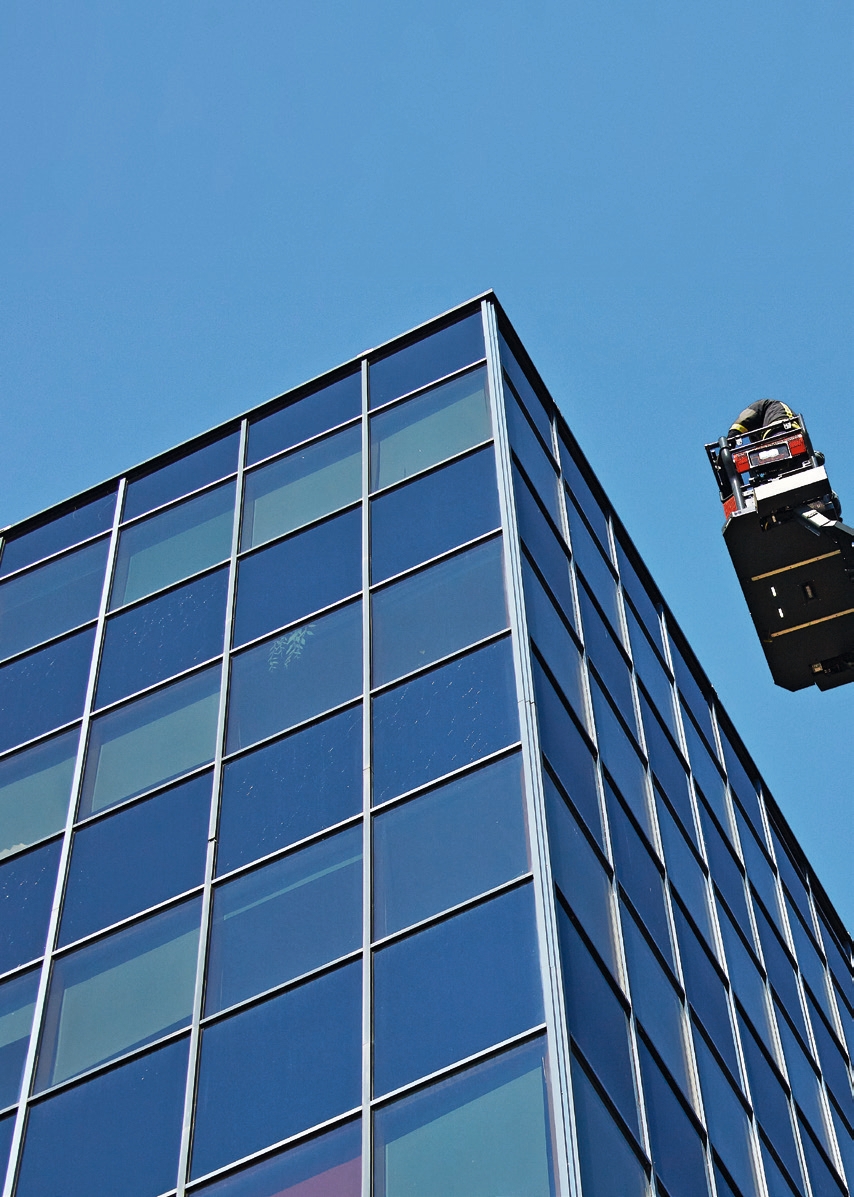

From compact to sky-high.
The family of aerial ladders
sky-high.
The secret to success: Metz Technology.
Diverse innovations for easy and safe aerial rescue.
Rescue operations depend on the reliability, speed, and flexibility of the operational equipment. Fire fighters are constantly confronted with new local conditions and operational challenges. Rosenbauer works closely with rescue personnel and draws upon their experience to continuously develop products that ensure the best possible safety

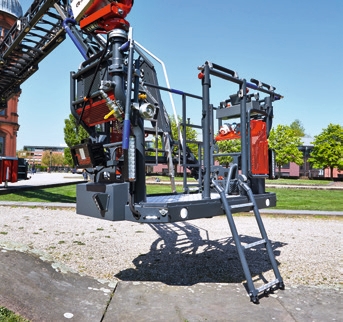

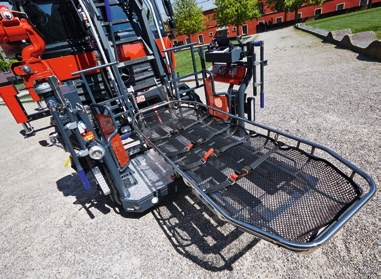

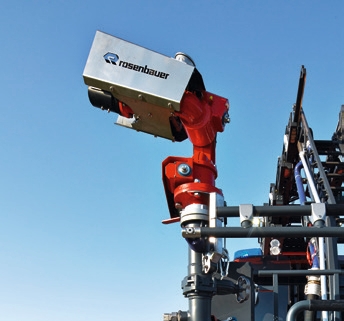

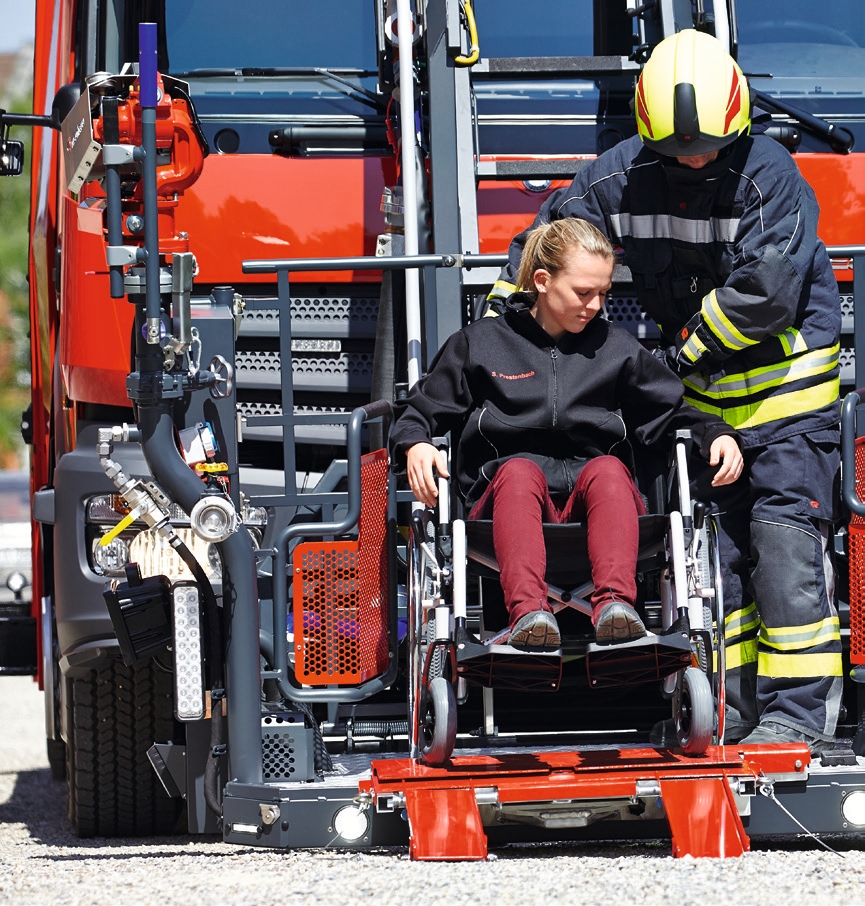

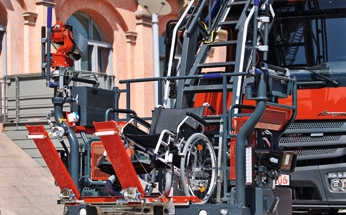

The modern 5-person cage, with a live load of 500 kg and 300 kg stretcher support load, is equipped with a 2-pin socket for a stretcher (placed directly on the floor of the cage) as well as a wheelchair transport option. It has a removable multifunctional column, an integrated water supply with optimized flow, and an attachable turret that can remain in the cage even in idle position.

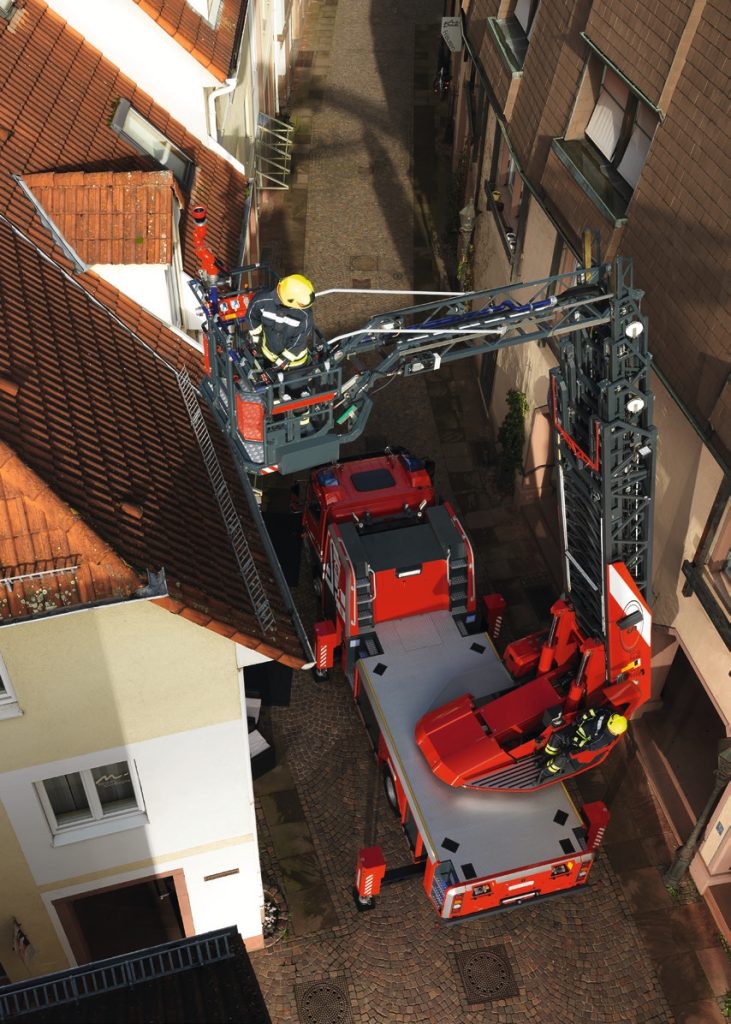

The L32A- XS enters a new dimension of maneuverability: the XS 2.0. Just like a pocket knife, the pivot point of the ladder set folds the ladder inward. The ladder sections are thus opened by three rungs. Thus the articulation can be angled immediately despite the swivel arm that is extended by 900 mm.
Without additional drives, the L32A-XS has a cage boom length of up to 4.60 m. Therefore, by optimizing the angle from the cage to the swivel arm, the minimal action radius is reduced to a previously unachievable 6.6 m, measured from the center of the pivot mounting to the top edge of the cage.
The continuously developed rescue cage has a live load bearing capacity of up to five persons or 500 kg
Always the right pivot.
From compact to sky-high

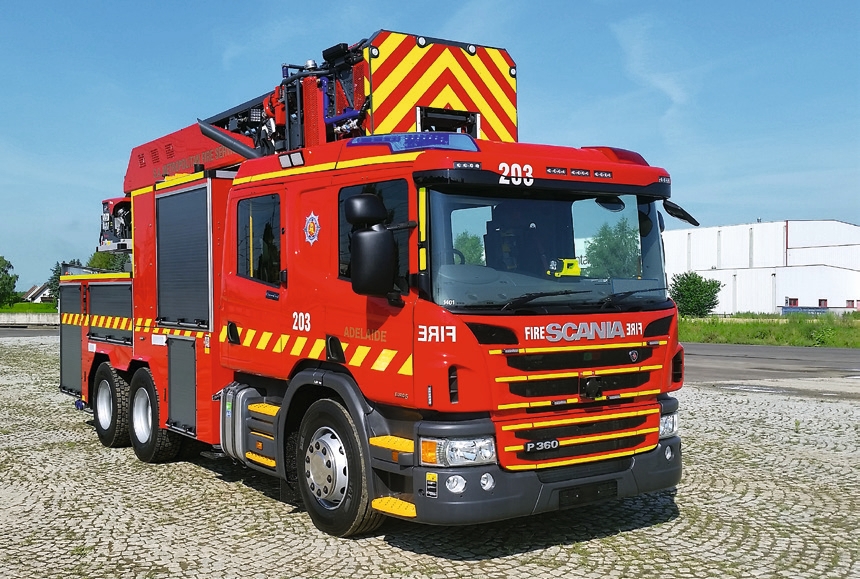

Multifunctional vehicles.
Perfectly equipped for every need.
“First attack” vehicles.
Firefighting and rescue at the same time.

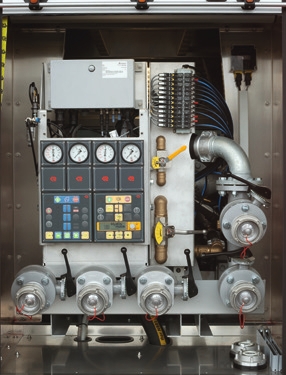

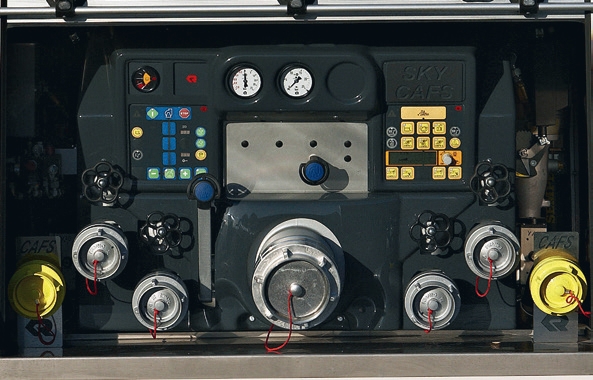

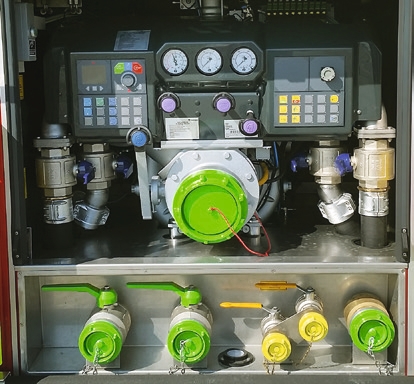

Rosenbauer’s comprehensive range of pumps sets completely new standards. It offers water discharge rates of 1,000 to 12,000 liters per minute. Innovative rear installation ensures that no valuable locker compartment space is wasted. Of course, it is also possible to arrange it laterally or in the center

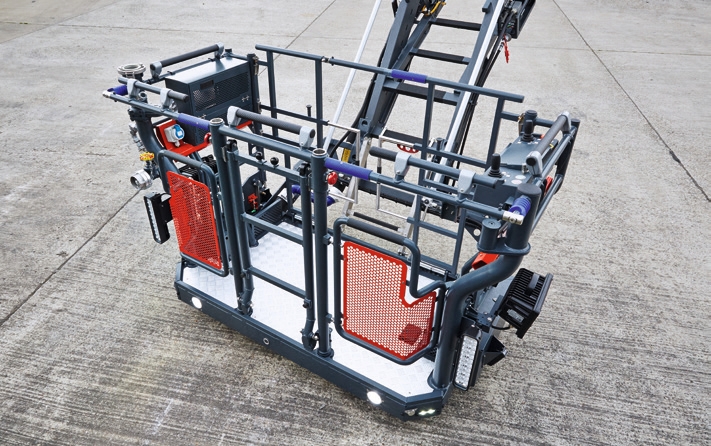

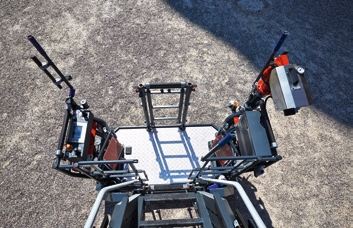

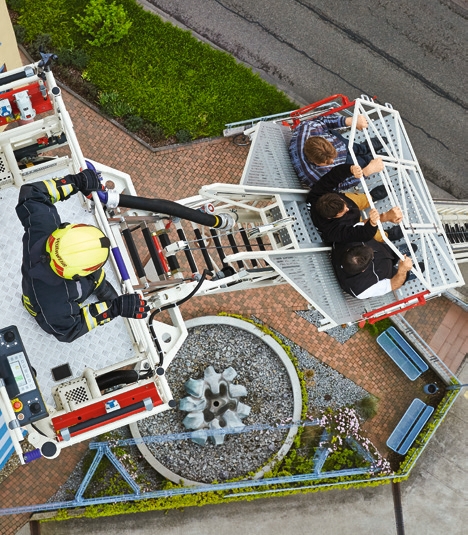

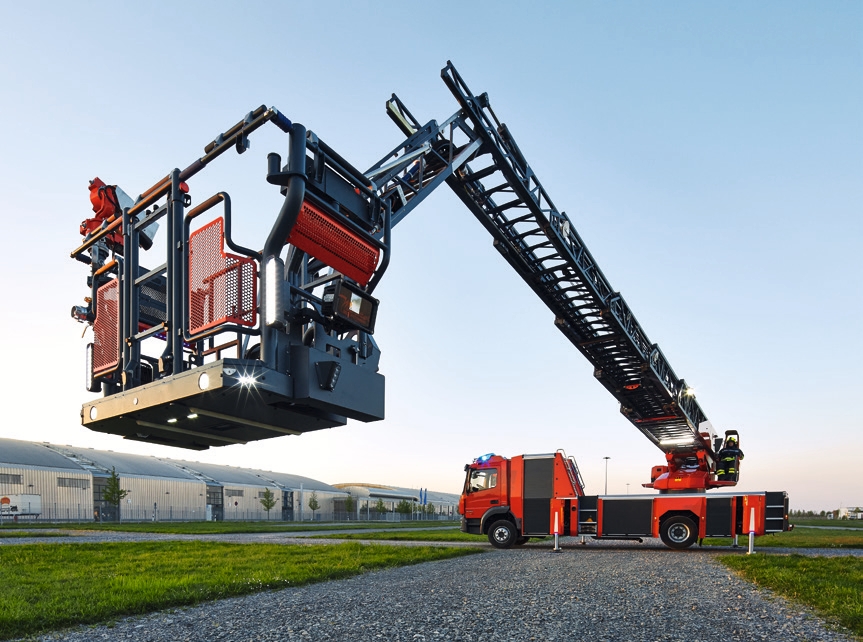

The highly developed rescue cage.
Sophisticated down to the smallest detail
One of our newest innovations is the HR 500 MF rescue cage. As a central
work space for firefighters, rigorous advanced development has resulted in a
completely new functional concept for rescue cages.
Rosenbauer products are characterized by high functionality, operation, safety and plenty of space. We have been consistently able to set new standards in technology and advanced development. Even the innovative HR 500 MF rescue cage has become lighter and more comfortable. It offers space for up to five people.

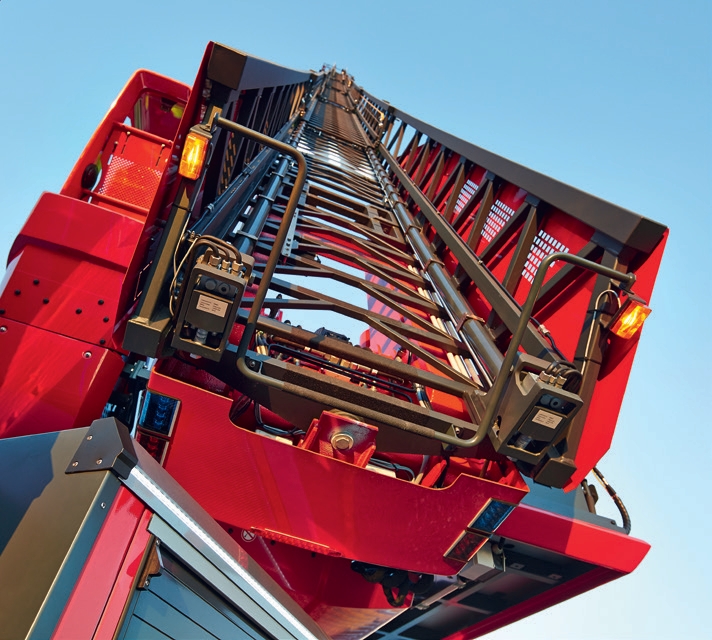

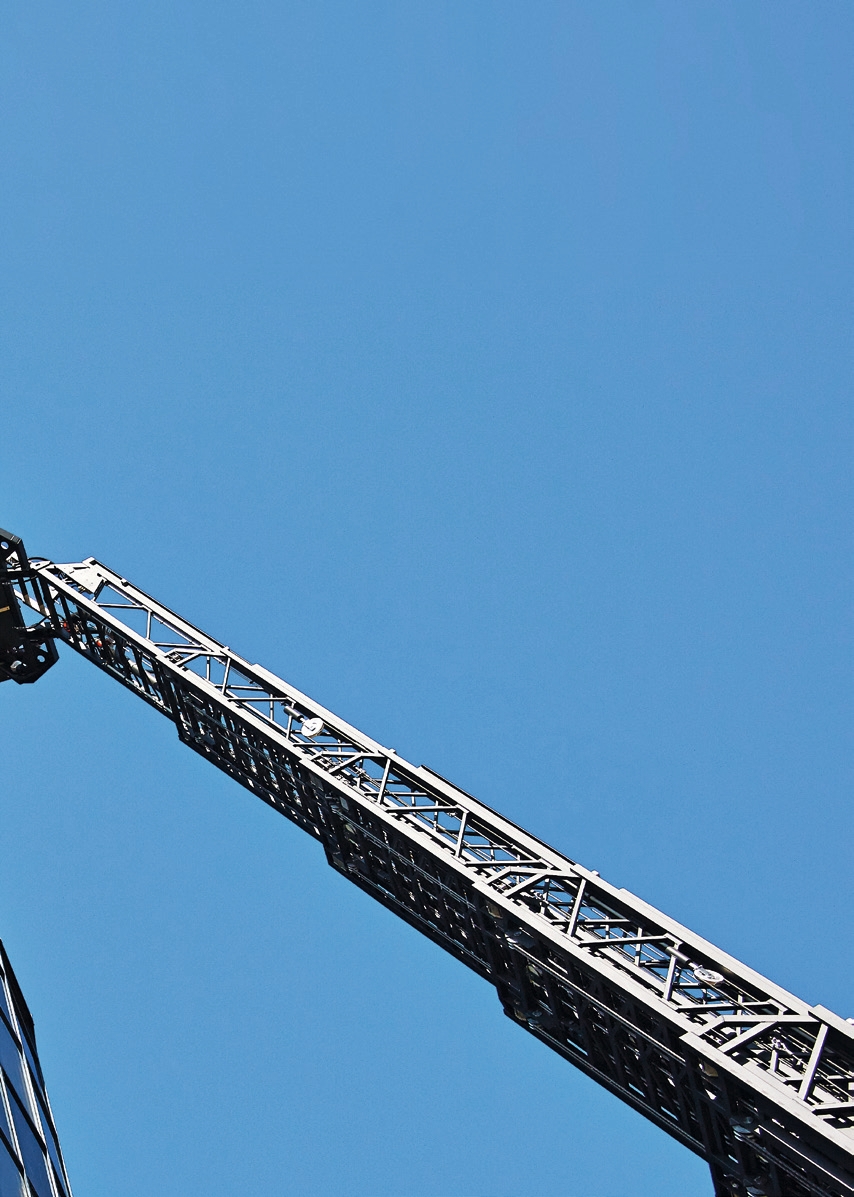

The ladder set.
Greatest stability for maximum safety
Patented box nodes design.
Highest processing quality.
Extremely wide access hatch.
Extensive recovery possibilities.
Optimal gripping security.
Optional: active hydraulic vibration damping.
Highly developed rescue lift.

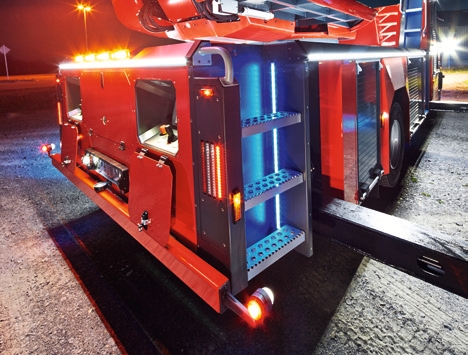

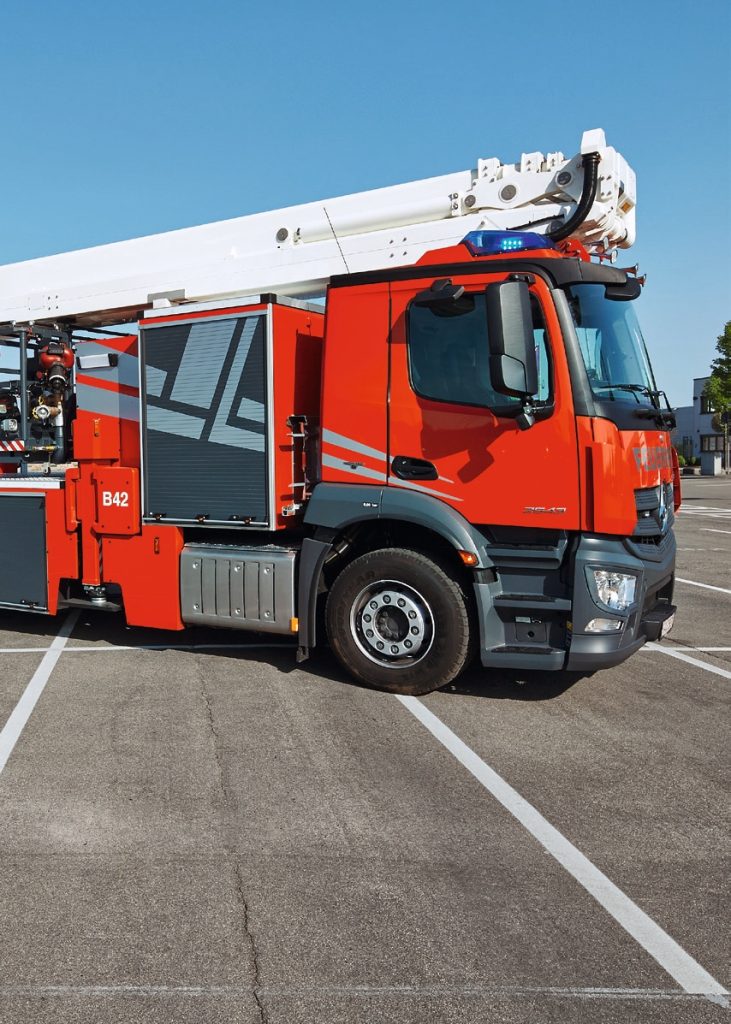

The body. Stable body with a clear view of the essentials.
The turntable.
With strong inclination to stable leveling
The automatic leveling system holds the ladder set in horizontal position up to an inclination angle of 10° in the longitudinal or transverse direction of the vehicle.
If the automatic leveling system is not sufficient for an operation, it can be expanded by an inclination angle of up to 14° with help of the outrigger.

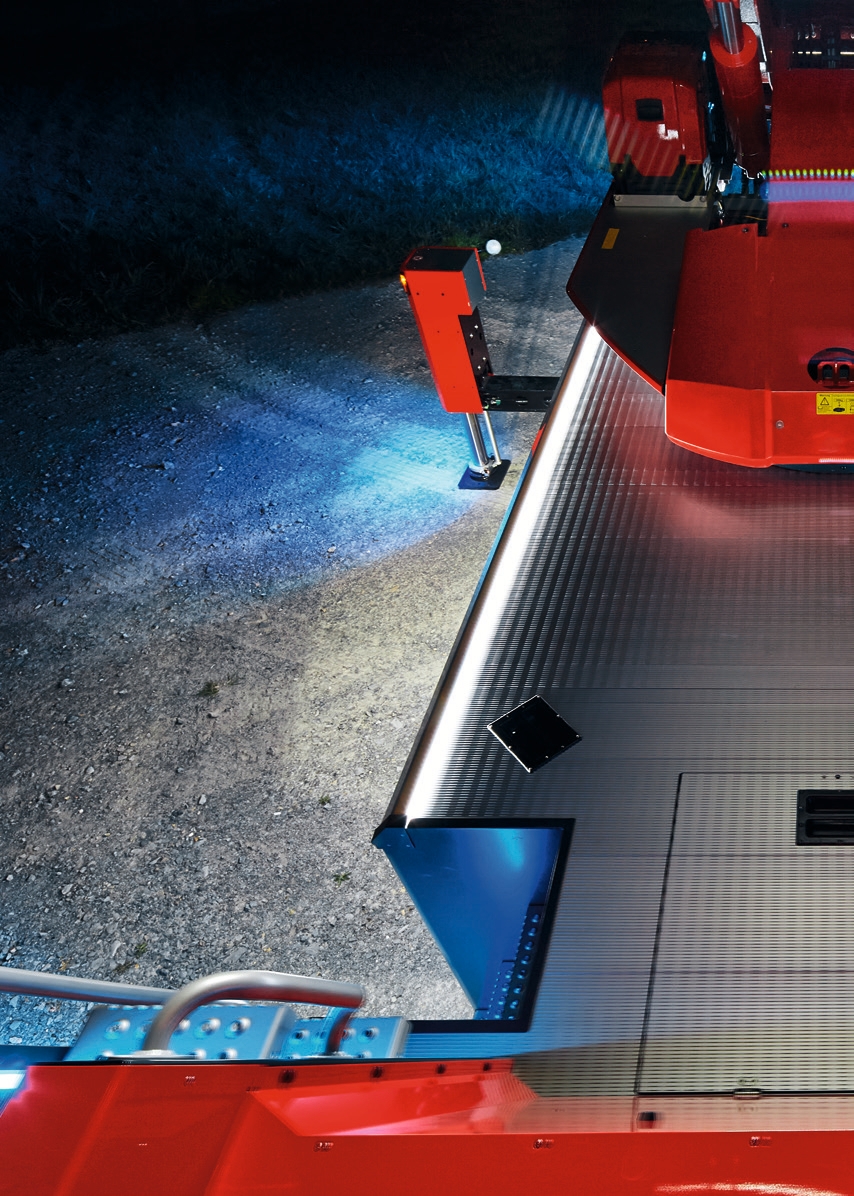

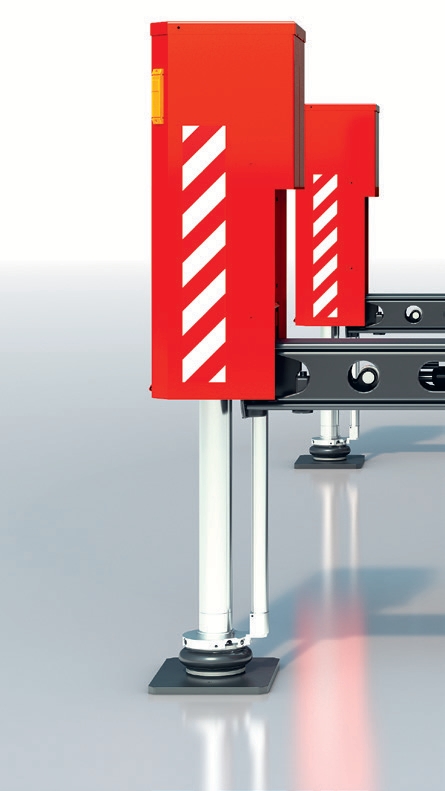

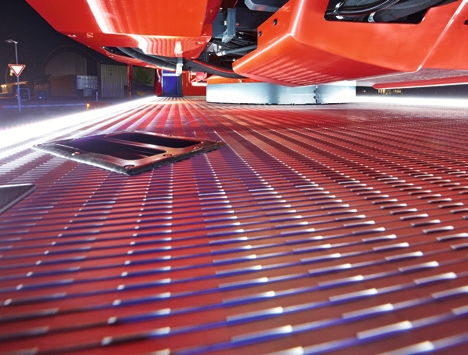

The outrigger. Stabilization creates safety.
Stabilizing vertical/horizontal outrigger.
Every Rosenbauer aerial ladder is equipped with a hydraulic vertical/horizontal outrigger for stability. All support move ments in the horizontal and vertical direction are continuously controllable within the maximum support range.
Narrow operational situations.
The outrigger in the contour makes it is possible to extend the telescopic boom by the full extension length and rotate 360° even in narrow 3 m operational situations.

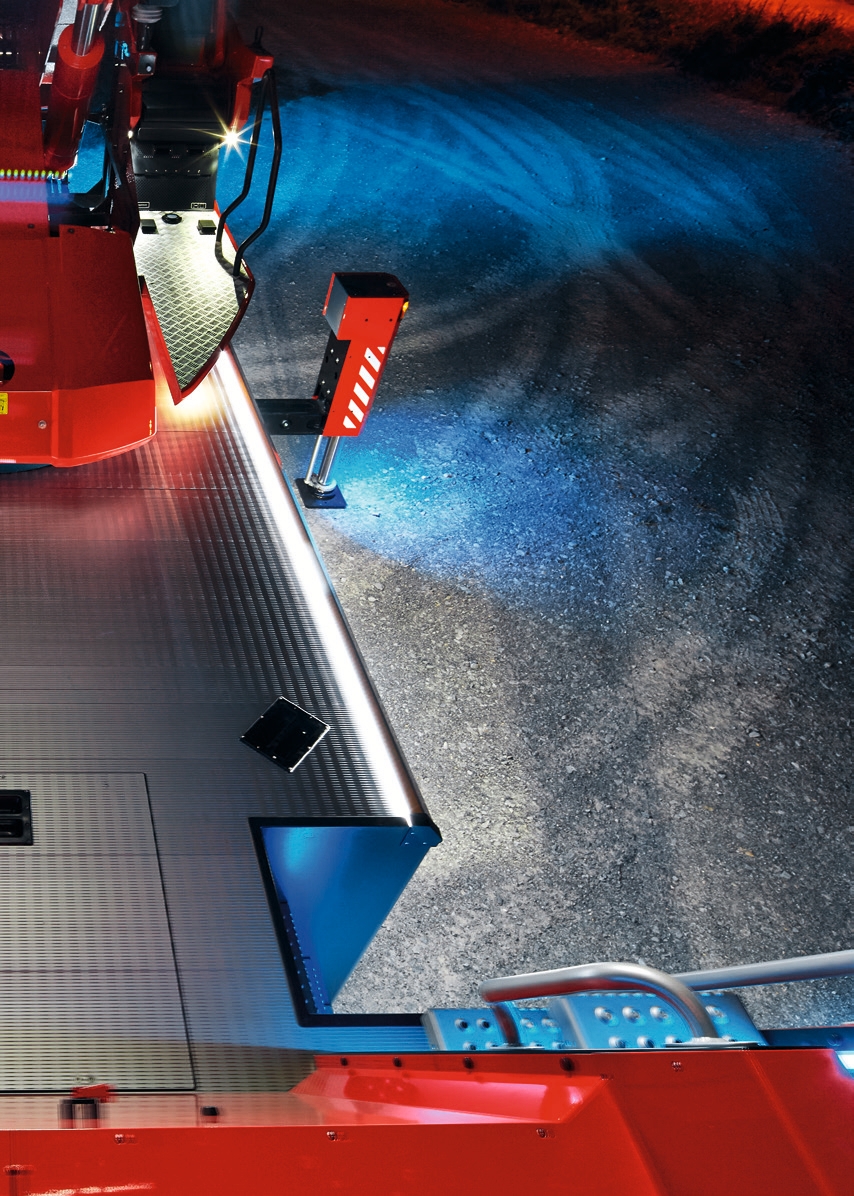

Optimal visibility.
Tripping hazards for emergency crews and passers-by are avoided thanks to the sophisticated outrigger contained within the vehicle contour. Optimal visibility and safety are guaranteed as a result

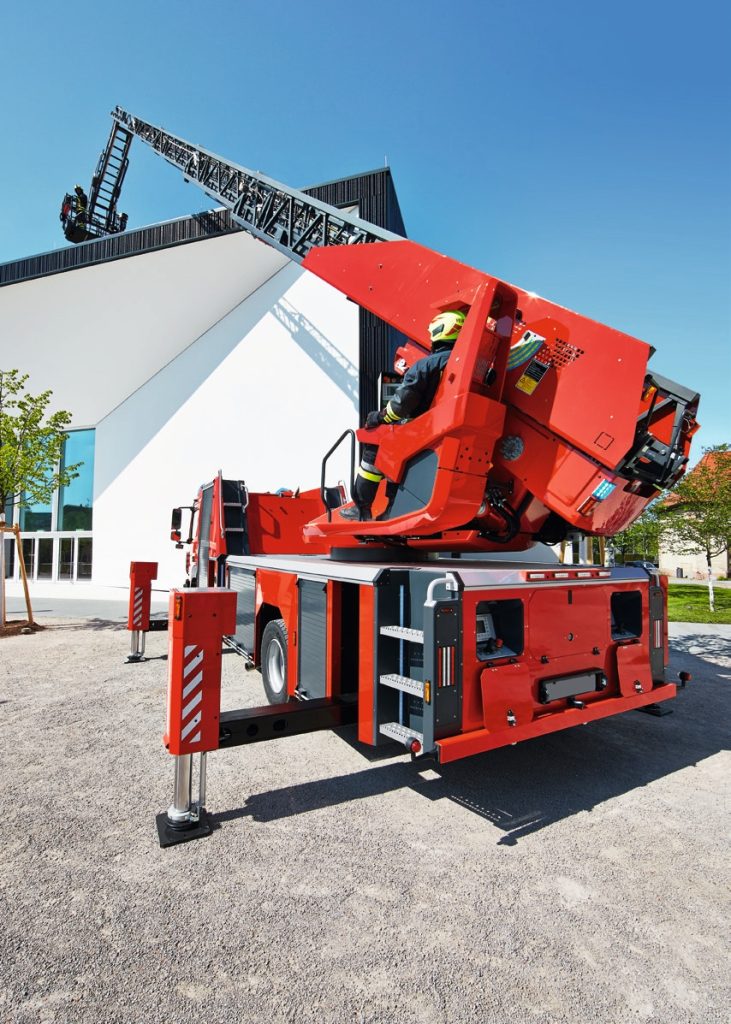

Operating philosophy.
Acting intuitively with a focus on what’s important
Rosenbauer aerial ladders are adapted to fast, everyday use and are characterized by easy, intuitive operation. The only way to guarantee safety and reliability in an emergency – from the start of the operation all the way to success ful firefighting or rescue

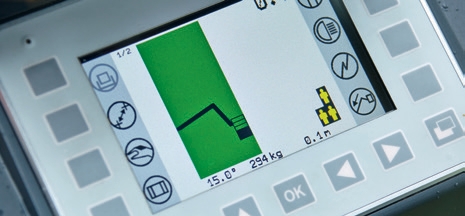

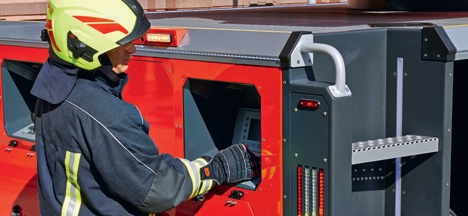

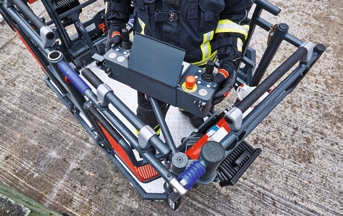

the main control panel

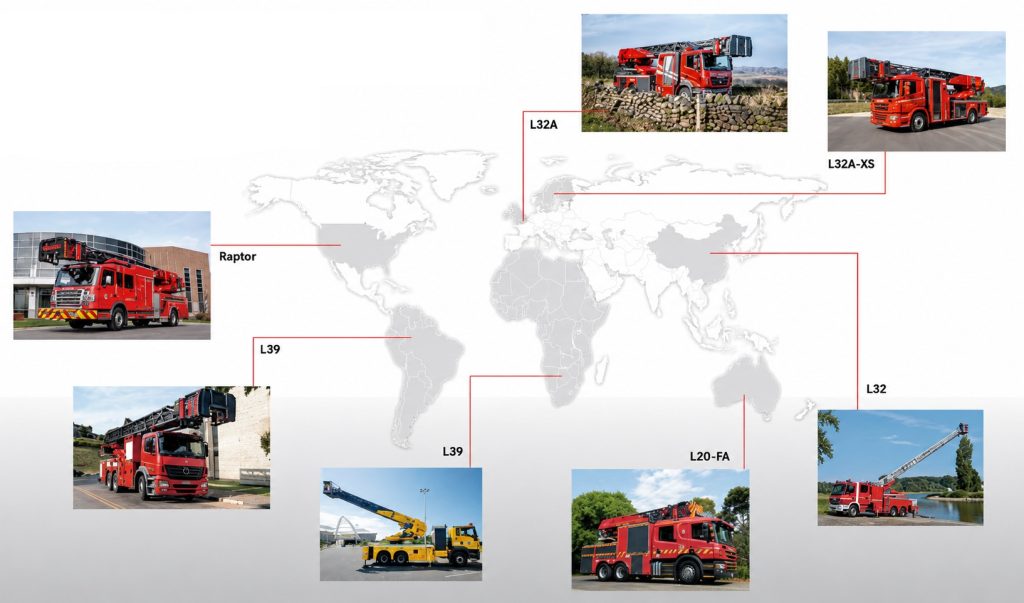

Internationality.
In operation around the globe.

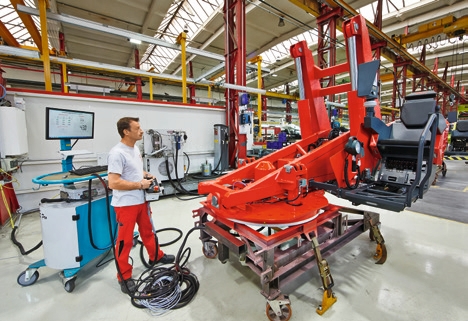

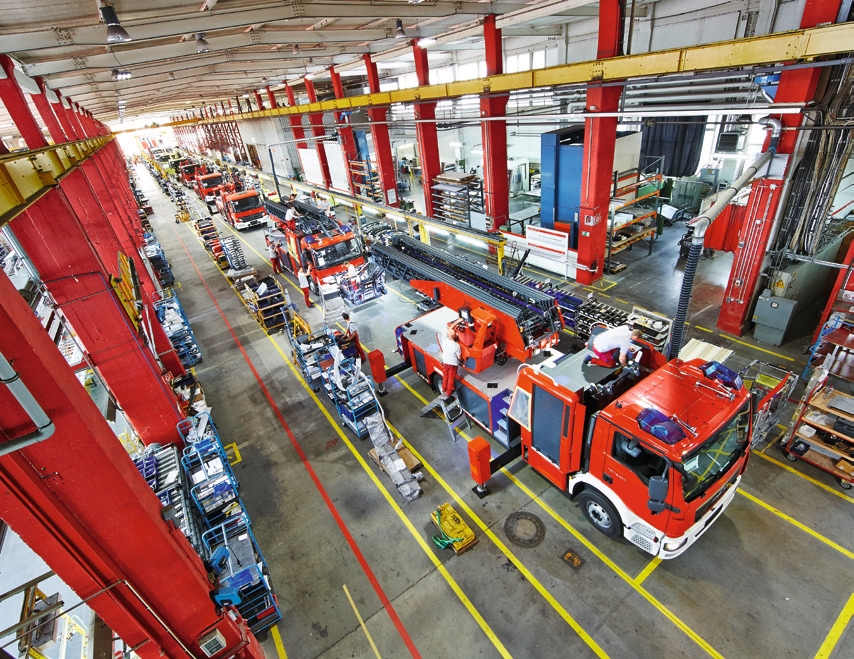

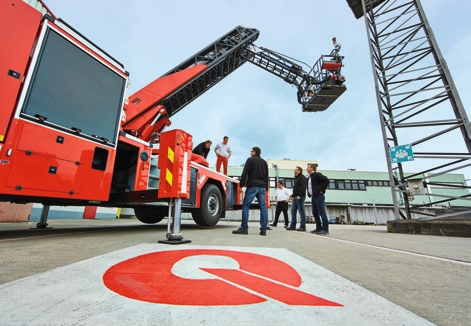

Production. Fabrication. Quality assurance.
Trust the technology leader
Service & support worldwide.
Our performance promise for your safety
In operations, only 100% will suffice. Every piece of technology and equipment must work flawlessly. Every tool ready for action. And when something does fail, firefighters want it back in operation as quickly as possible. One call to Rosenbauer is all it takes for a technician to arrive within 24 hours from the nearest Rosenbauer Service Station
