Portable battery LED lighting system
The multi-functional Rosenbauer LED lighting systems are used wherever supplying the right light is difficult. The RLS1000 and RLS2000 provide assistance in operations where supplying power is generally a challenge (e.g., during flooding) and on difficult terrain (e.g., forests, on rooftops). Operational areas can be optimally illuminated without any additional power source. The powerful LED lighting systems are not only helpful to fire departments, but are also ideal for other emergency response organizations, such as the police and technical relief organizations
Excellent light output, with rechargeable battery
The RLS2000 and RLS1000 both feature an integrated, powerful battery. Depending on the model, it can have a lighting time up to 17 h at100% light output, without any external power. Using an optional power adapter makes unlimited operational use possible, without time limitation. Thus, the powerful lighting system ensures optimum lighting conditions all through the night. A colour temperature of 6,500 Kelvin provides daylight-like conditions in the middle of the night. The light output can be increased to 150% with the Powerboost function.
Intelligent battery management
With an integrated battery and 12 V/24 V charger, the RLS devices are also distinguished by their practical application. The RLS lighting systems have an integrated charging unit that not only monitors its own battery status, but also that of the donor battery (e.g. the vehicle battery). Charging is especially easy. All you need is a cigarette lighter socket – plug in, charge, ready. All without an additional charger. The lighting system can be charged and operated from any 230 V socket with the optional power adapter
RLS2000 and RLS1000 – The clever LED lighting systems

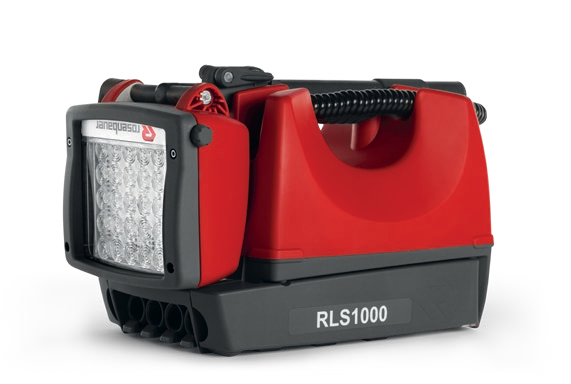

RLS1000 – The first light at the scene of an emergency.
The RLS1000 has an integrated, powerful battery that lasts up to 17 hours at 100% light output. The swivelling lighting head features 30 high-performance LEDs with a special lens system plus 16 multicolour LED

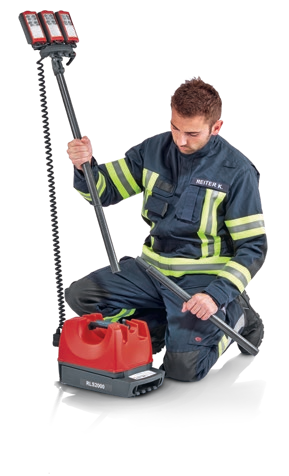

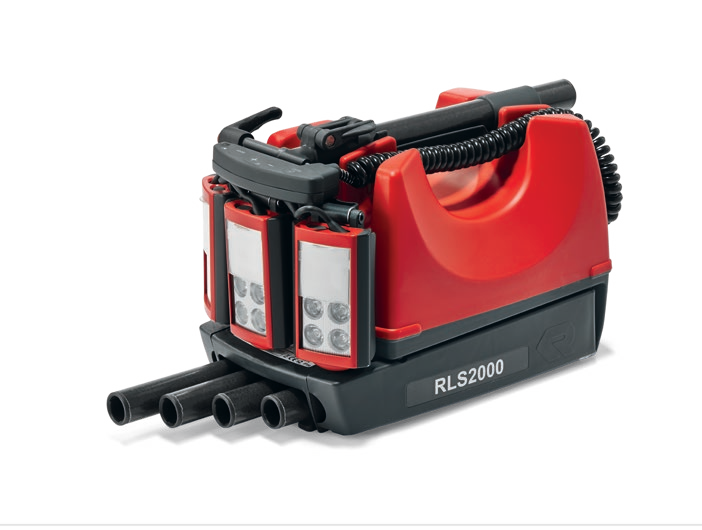

RLS2000 – Perfect 360° illumination at the scene of an emergency.
The new, completely flexible LED lighting head of the RLS2000 is another plus
for this popular lighting system in terms of functionality. Anything is possible
with the multi-functional lighting head that moves in all directions: from a
powerful spotlight for search and rescue operations to a 360° floodlight. Even
a combination of the two is possible.
▪ Three flexible LED light panels: Provide 360° illumination as well as a variety
of application possibilities in operation. The angle of inclination of each panel
can be individually adjusted to any position.
▪ High Power LED Technology: highest efficiency for maximum light output
▪ Variable Light Power: the three panels can be individually switched on and off
▪ Perfect 360° illuminationwhen used with a large 4.70 m (15’5″) tripod
Simple and practical. The RLS2000 and RLS1000 combine all components of a powerful floodlight in a single functional system.
Dimming function
The work light can be dimmed in multiple stages, with a light output from 8% to 150%. The light output can be regulated as needed.
Diffuser
A special diffuser enables continuous switching between focused spotlight and wide angle light. Whether with the spotlight to search for persons involved in accidents or the floodlight as a low-glare working light, the RLS2000 and RLS1000 always provide the right illumination

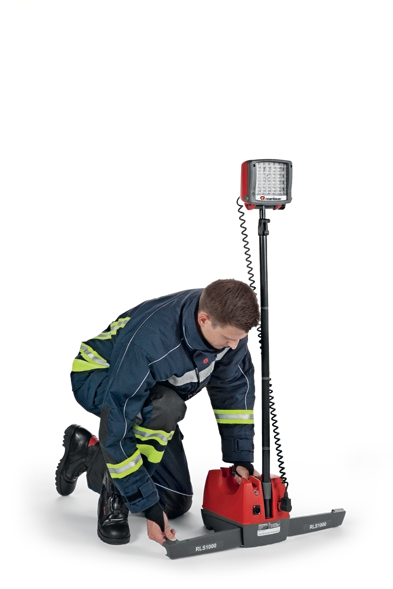

Integrated tripod, easy height adjustment
Signal flashing light in various colors Additional flashing functions also allow it to be used as an LED signal light in 5 colors:
▪ Red flashing light, e.g. as identification command
▪ Green flashing light, e.g. to mark the meeting point for crew with SCBA
▪ Yellow flashing light, e.g. to mark danger zones on the road
▪ Blue flashing light, e.g. to identify rescue organizations
▪ White flashing light, e.g. as a general signal light
The integrated extension poles with quick lock system (quick-release device) allow the light head to be set at different heights, up to a maximum of 1.80 m (5’10”). The main advantage: an additional tripod and extension cord are no longer necessary. Fold-out stabilizers ensure stability even on uneven surfaces. With the practical carrying handles the floodlight can also be used as a hand lamp, to light the way to the scene, for example
